This is a short pictorial that describes the installation of the Kato FL12 decoder in the Kato N Scale Water Tender.

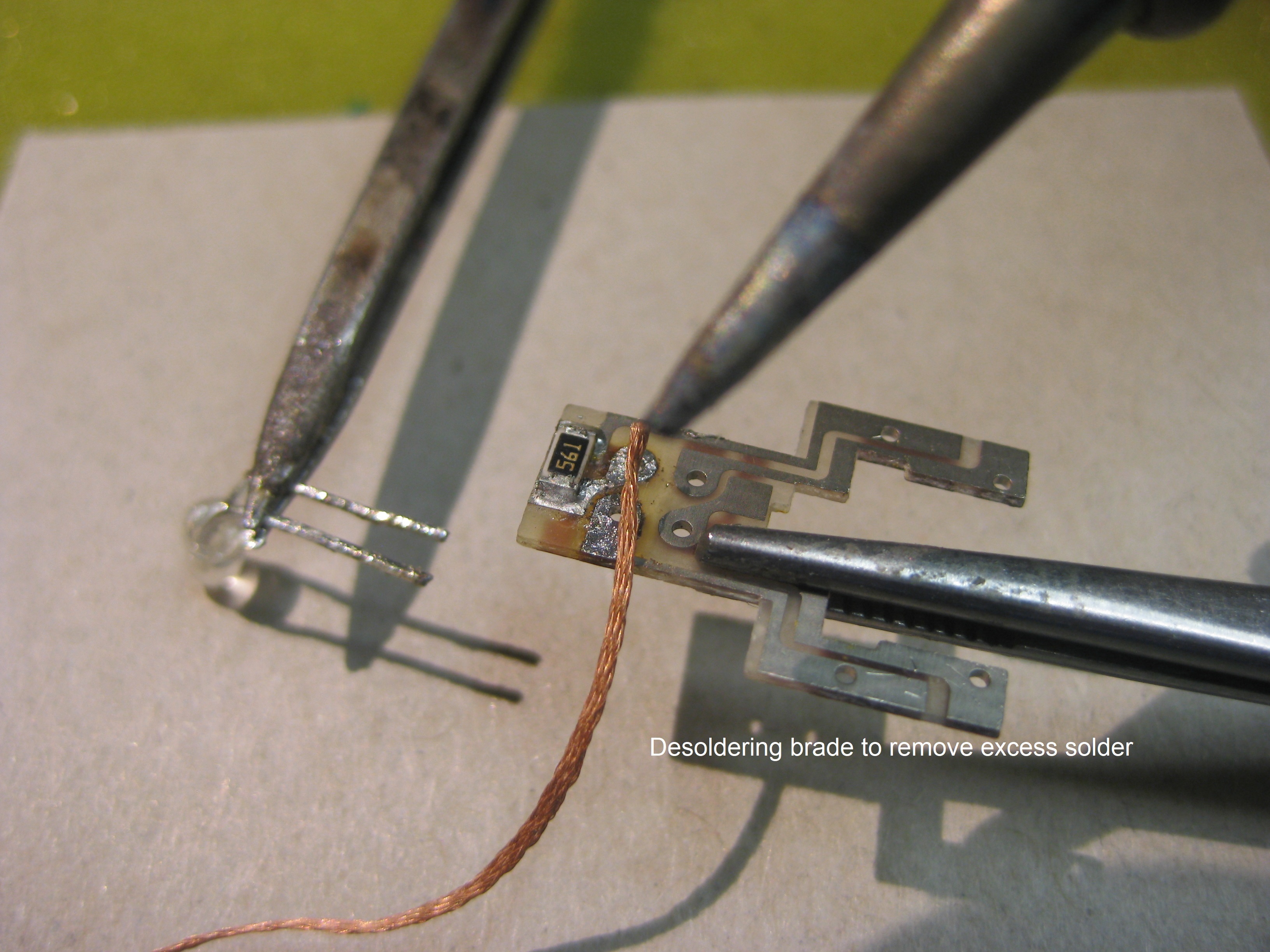

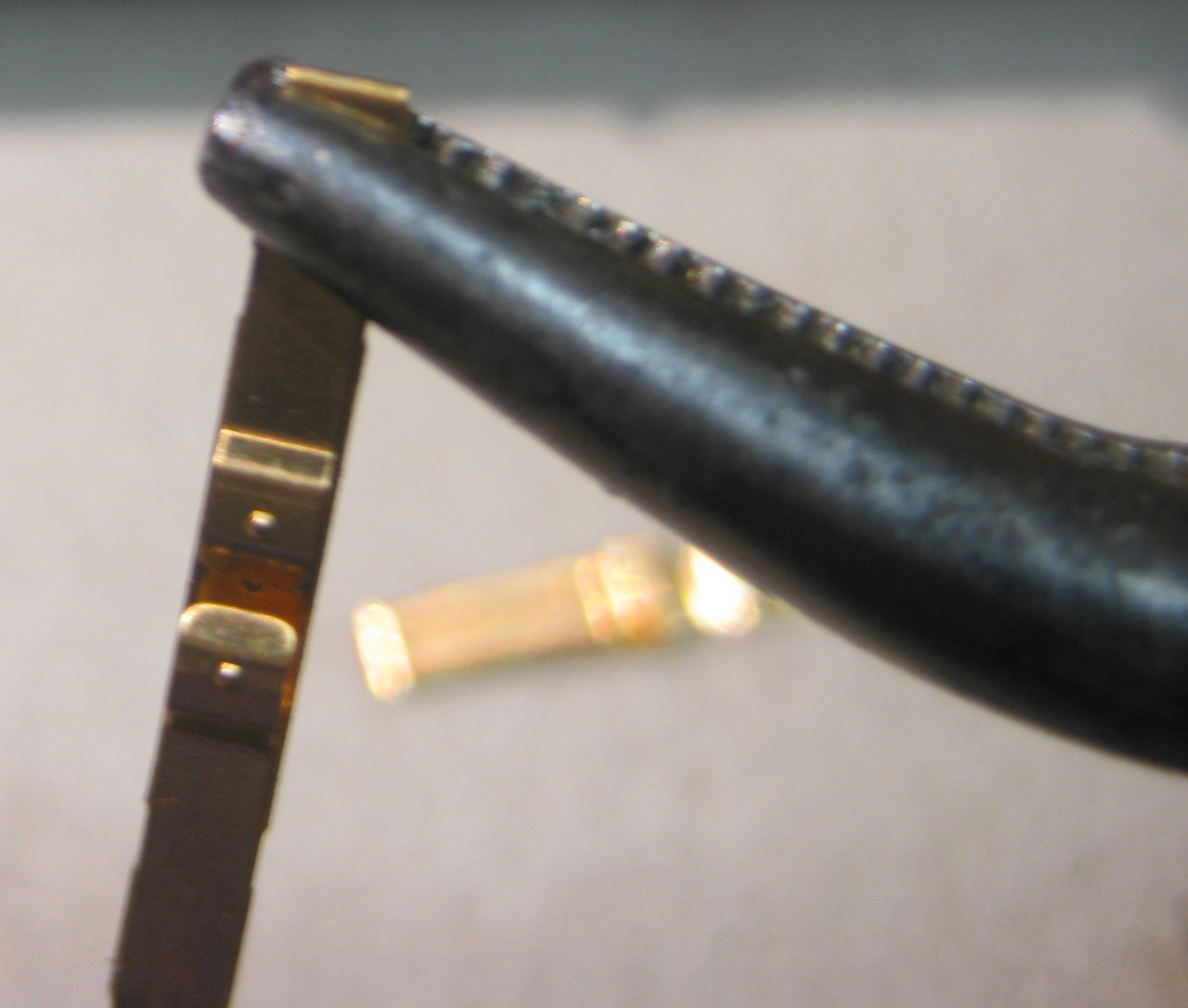

The decoder cannot be used natively and the 928-065 light board kit must be modified for its use by reversing the LED leads on the light board.

Do not attempt to make these modifications it you are not very comfortable and understand the techniques in modifying and soldering a circuit board components and installing the FL12 decoder.
Kato Water Tender FL12 Light board Install

Kato Water Tender FL12 Light board Install

Kato Water Tender FL12 Light board Install

Kato Water Tender FL12 Light board Install

Kato Water Tender FL12 Light board Install

Kato Water Tender FL12 Light board Install

Kato Water Tender FL12 Light board Install

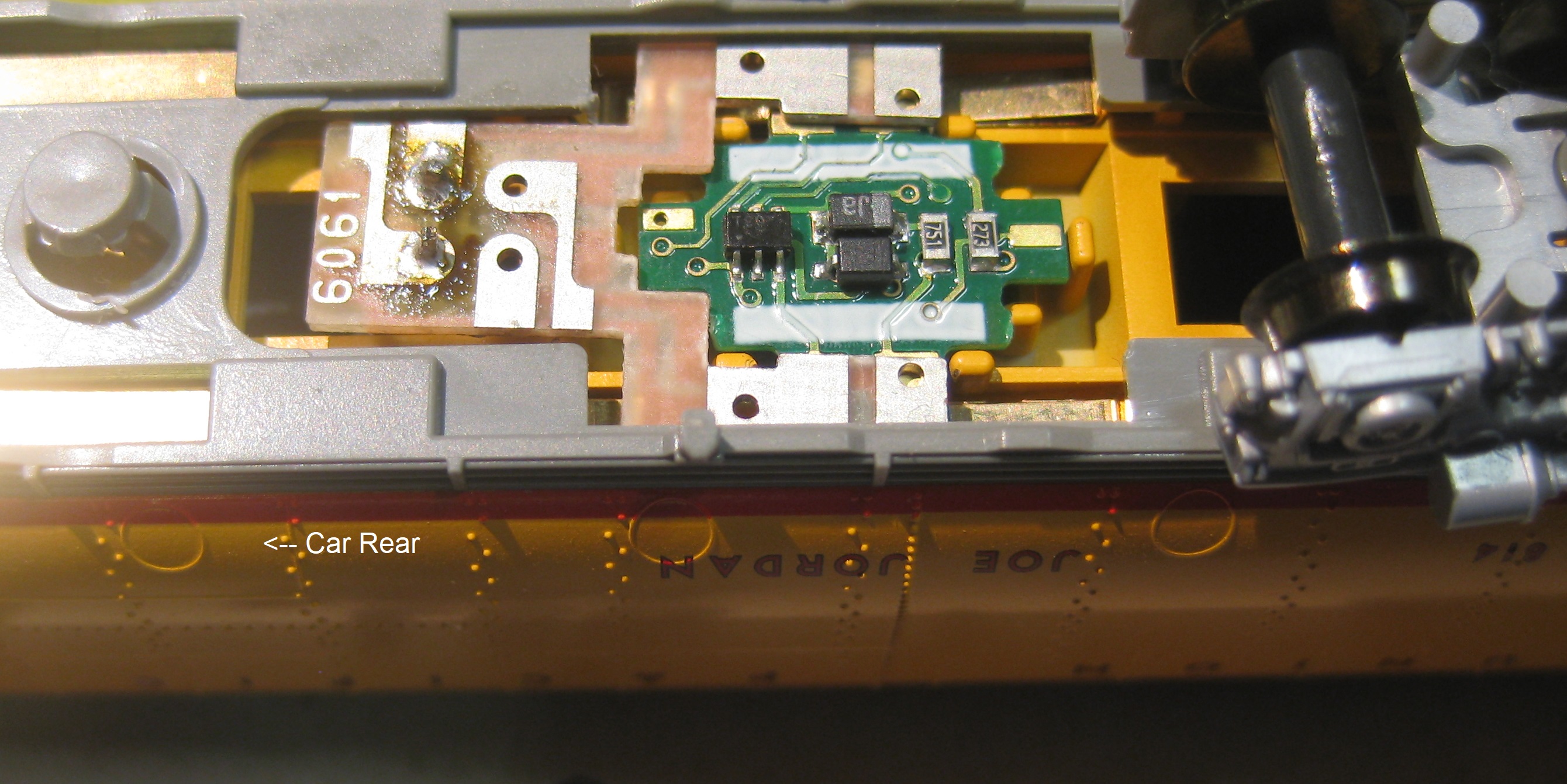

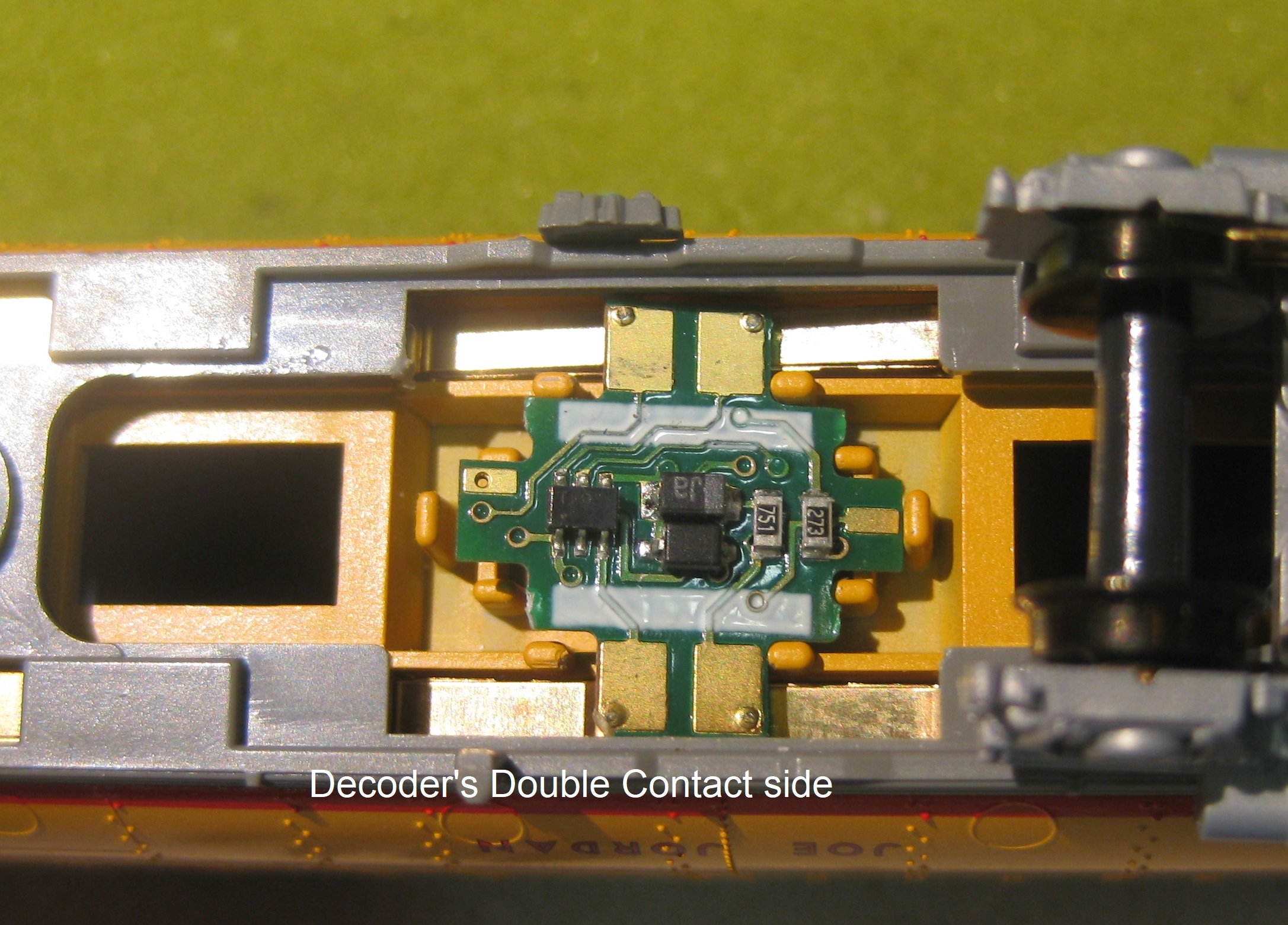

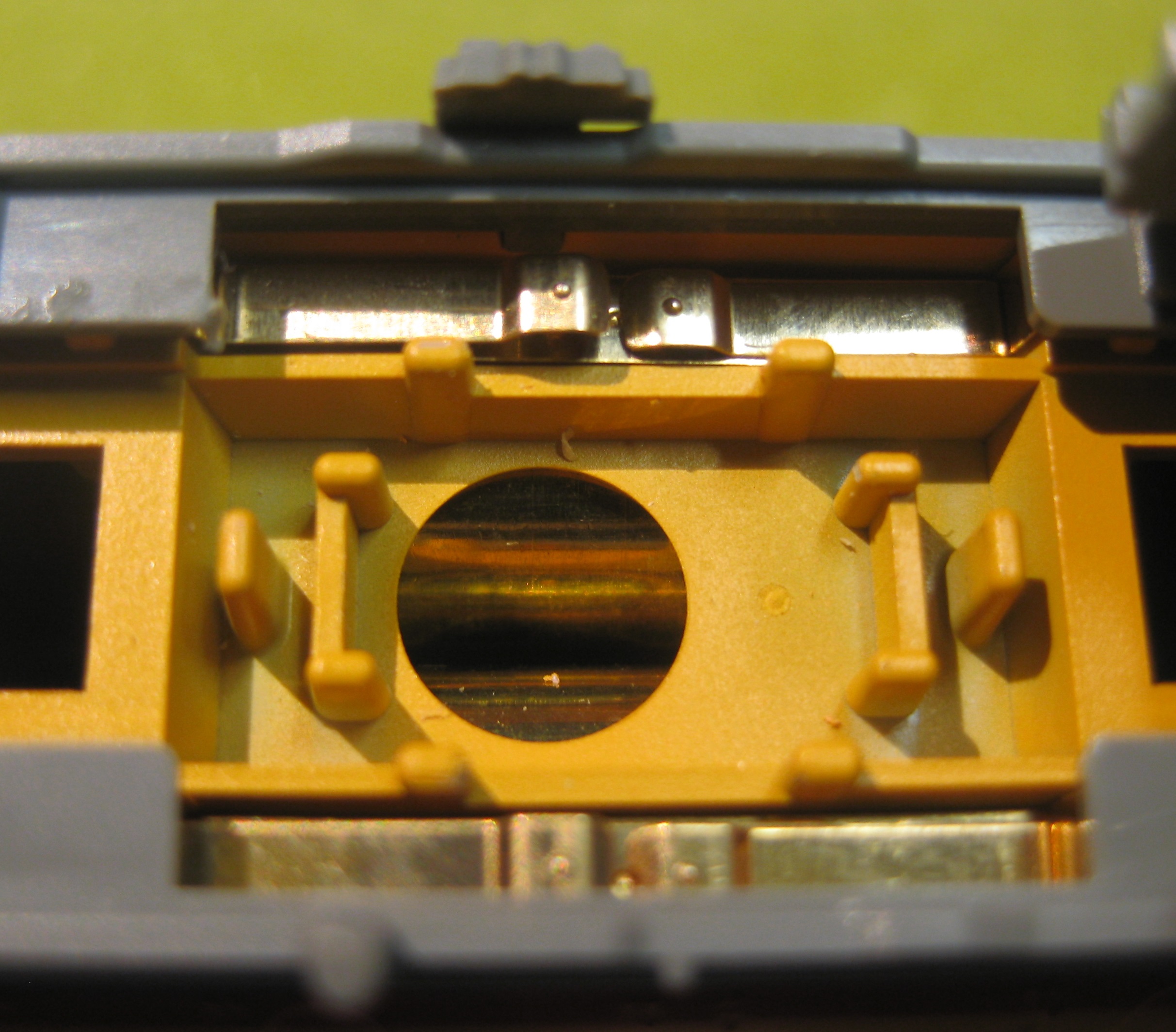

The decoder is placed on the contacts with the double contacts as shown in the picture and
finger contact with the tiny hole towards the rear where the LED will be.

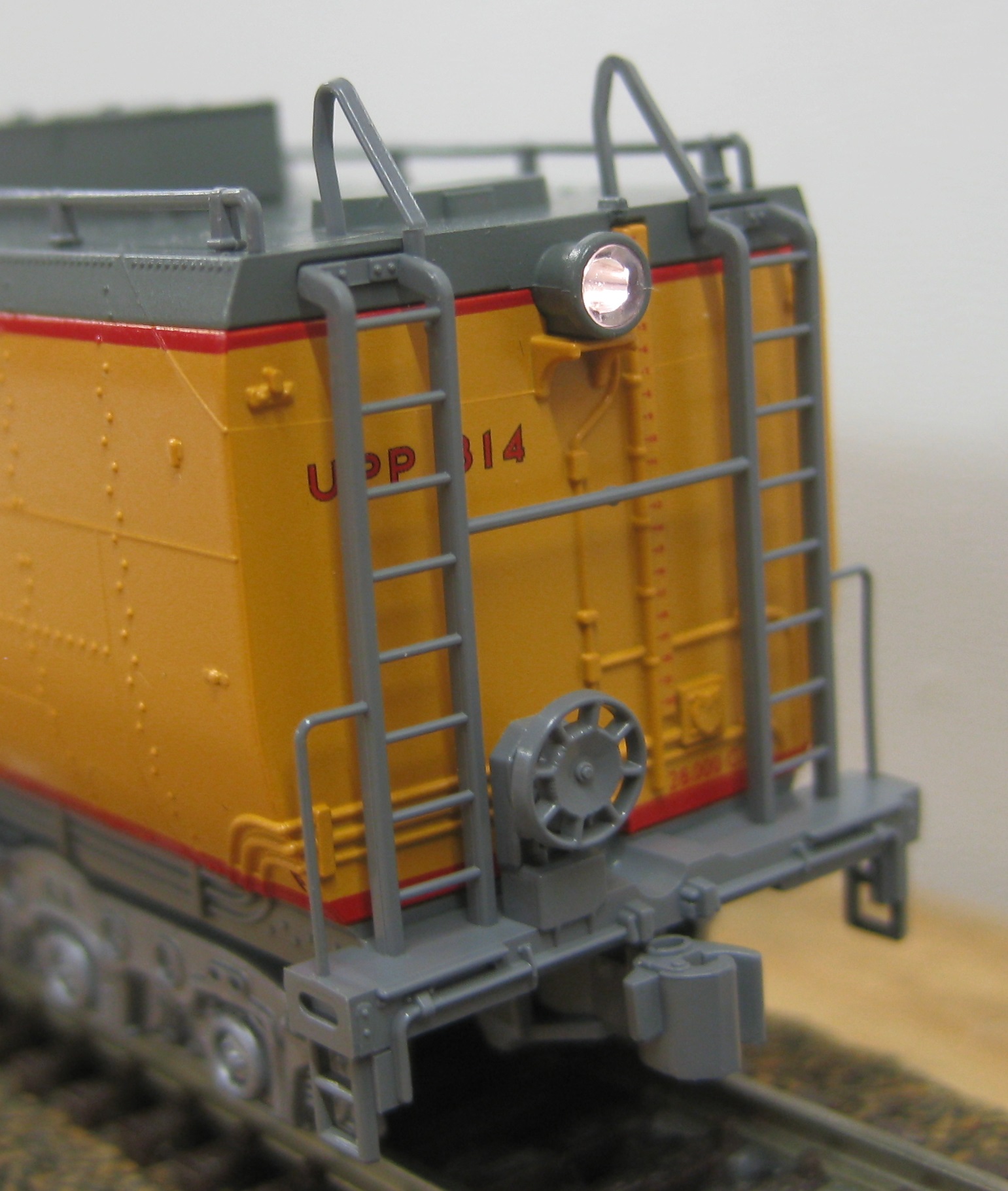

The Decoder responds to Function 0 and the light will be on in reverse with F0 on.
